Portable colour spectrometer paint color-matching machine chroma meter NS810

FOB Reference Price:Get Latest Price
  • 3 - 4 Units
    US $2600.00
  • >=5 Units
    US $2450.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
3NH
Model Number:
NS810, NS810
Size:
(L*W*H)90*77*230mm
Weight:
600g
Focal Length:
N/A
Wavelength Range:
400-700nm
Measurement Range:
L: 0-100
Integrating sphere Size:
58mm
Measuring Aperture:
8mm
Observer:
2°/10°
Repeatability:
DeltaE*ab 0.04
Display Screen::
TFT 3.5inch, Touch screen
Data Memory:
1000 Standards, 10000 Sample
Delivery day:
1 working days after payment
Warranty:
2 years
Sample order:
Yes
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard package
Port
Shenzhen
Lead Time :
Shipped in 2 days after payment
Spectrophotometer

Portable colour spectrometer paint color-matching machine chroma meter NS810

NS810 spectrophotometer is developed by 3nh with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.

It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

Model
NS810 Color Spectrophotometer
Illumination/observation system
d/8 (diffused illumination, 8-degree viewing angle) Comply with CIE No.15, GB/T 3978.
Integrating sphere Size
Φ58mm
Light Source
combined LED sources
Sensor
Silicon photodiodearray
Wavelength range
400~700nm
Reflectance range
0~200%
Measuring Aperture
Φ8mm
Color Space
CIE LAB,XYZ,Yxy,LCh,CIE LUV
Color difference Formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000ΔE*00,ΔE(h)
Other Chromaticity Data
WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
Metamerism Index (Mt)
Colour Stain, Color Fastness
Opacity
Observer
2°/10°
Illuminant
D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12
Display Data
Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Repeatability
Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Data Memory
1000 Standards, 15000 Samples
Standard Accessory
Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
Optional Accessory
Micro Printer, Powder Test Box

Main Features

1) 8mm measurement aperture

2) CE,ISO9001,ROHS,FCC,TUV certifications

3) Whiteness,Yellowness, Opacity, etc

4) 0.04 accuracy

5) PC software - SQC8.

Detail Images

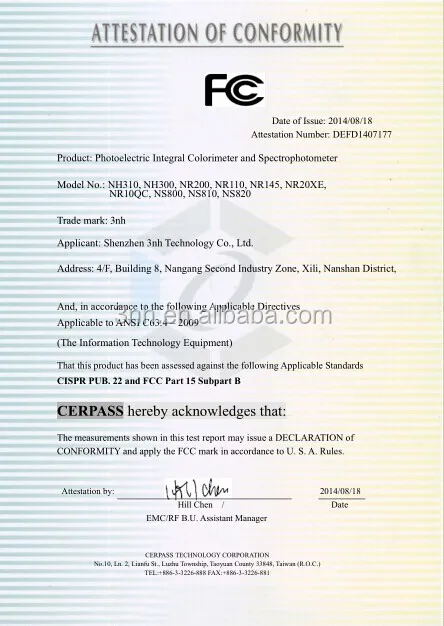

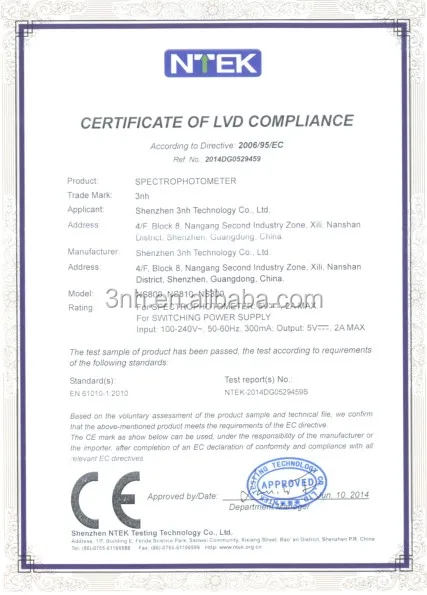

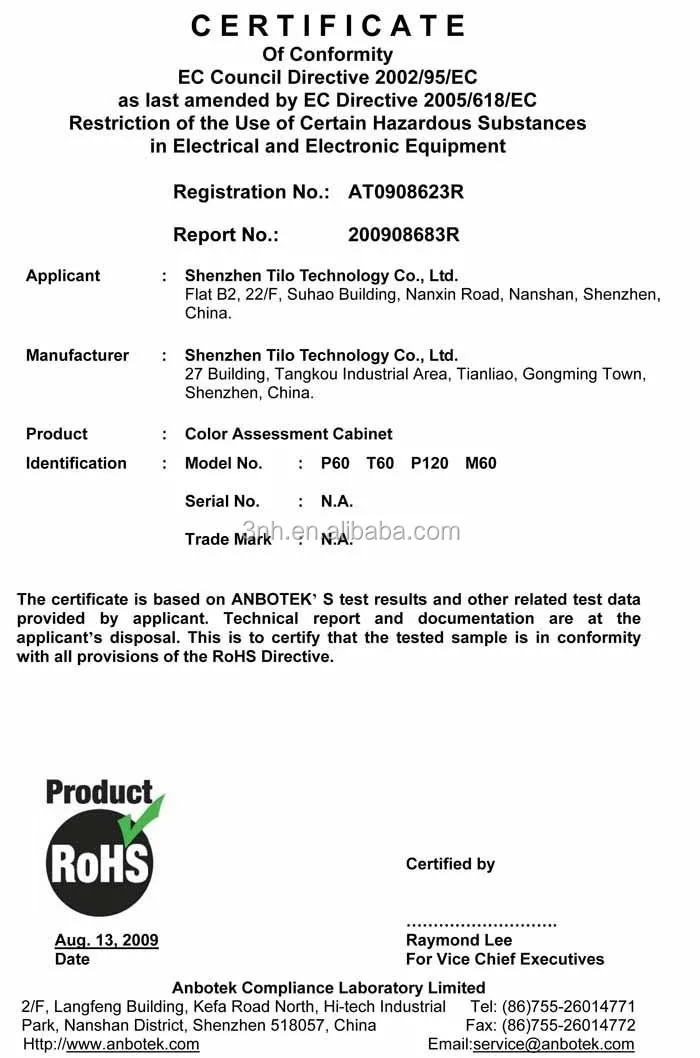

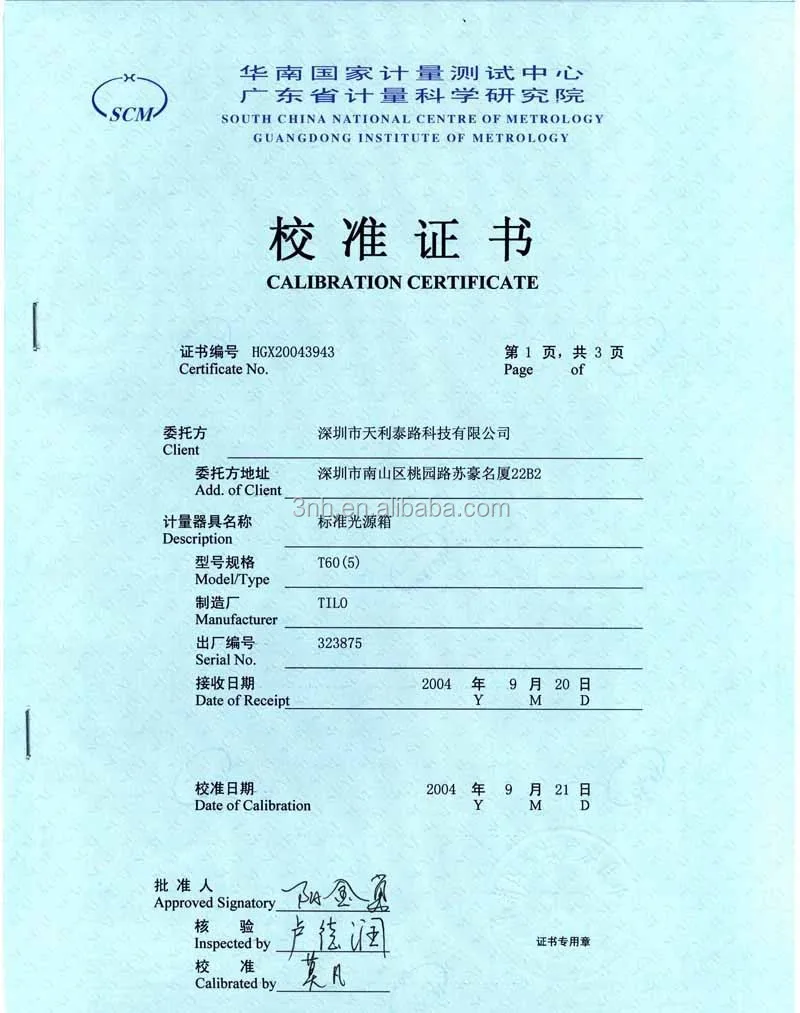

Certifications
Packing & Delivery
Packaging
Size
45*23*38cm
Weight
3.5kg



Packaging Details
Carton Package.

NS/NH series package

Aluminum case for NS spectrophotometer and NH colorimeter, and NR60CP

NR series package

Leather bag for NR110,NR145,NR20XE colorimeter model

NR200 colorimeter package

Carton package for NR200 colorimeter model

About us
Shenzhen 3nh Technology Co., Ltd, is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.

Shenzhen 3nh Technology Co., Ltd. and Shenzhen TILO Technology Co., Ltd are from the same boss, we work together in one office.

We produced colorimeter, spectrophotometer, color light box and gloss meter, iso 12233 test charts, and we offer OEM service and supply all kinds of custimzed service.

Our products are widely used are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory.

QUALITY POLICY

ISO9001, CE, TUV, ROHS, FCC, SCM etc.

OUR CLIENTELE

LG, LENOVO, HUAWEI, EMERSON, SIEMENS, SONY, YKK, PHILIPS, Power Dekor, SEIKO, UNILEVER, Galanz, Colgate, Haire, YOUNGOR, KELON ETC.

PRODUCT PORTFOLIO

Product classification Spectrophotometer/Colorimeter, Colorimeter Accessories, Digital Imaging Test Solution ,Resolution Test Chart, Gloss Meter, Color light box etc

AIM / VISION / MISSION

3nh Vision Focus on color, to become the industry leader in color management field. 3nh adheres to people-oriented, customer first, technological innovation, sustainable development business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.
